Wire Reinforced Non Asbestos Woven Brake Lining For Mooring Winch Anchor Windlass

Brand Name : KBN

Model Number : AF-5

Certification : ISO9001

Place of Origin : Henan

MOQ : 30 Rolls

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 10000 rolls per month

Delivery Time : 18 work days

Packaging Details : Plastic Woven Bag or Plywood Case

Oil Resistance : Excellent

Width : ≤500mm

Thickness : 4-35mm

FOB Port : Shanghai, Ningbo, Qingdao

Usage : Farm Tractors, Winch, Windlass, Sugar Mill, Lift, Crane,Blender, Power Generator, Construction Machinery, Etc

Raw Material : Brass Wire, Viscose Fiber, Glass Fiber, Resin, Etc

Samples : Free

OEM : Available

Contact Now

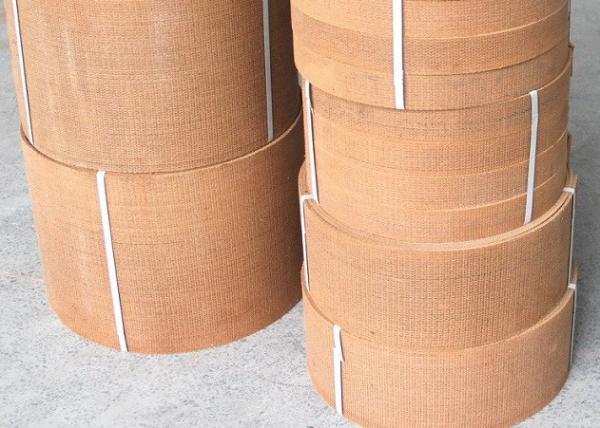

Wire Reinforced Asbestos Free Brake Lining for Mooring Winch Anchor Windlass

Being reinforced by brass wires, brake Lining with brass wire inside is with good wear performance. At the same time, it's without asbestos, eco-friendly.

Technical Data of Woven Brake Lining Roll
Temperature	Coefficient of Friction	Wear Rate(Cm3/N.m)
100°C	0.40-0.65	≤0.3×10-7
150°C	0.35-0.65	≤0.5×10-7
200°C	0.30-0.60	≤0.7×10-7

It's made of friction material, brass wire, yarns and resin. It's applicable to industrial machinery that requires a high degree of friction, can be used in tractors, oil wells, dredges, sugar mills, winch, cranes, construction machinery, power generators, voltage controllers, cutters of paper, stamping machines, glass melting machinery, motorcycles and among many other industrial fields.
